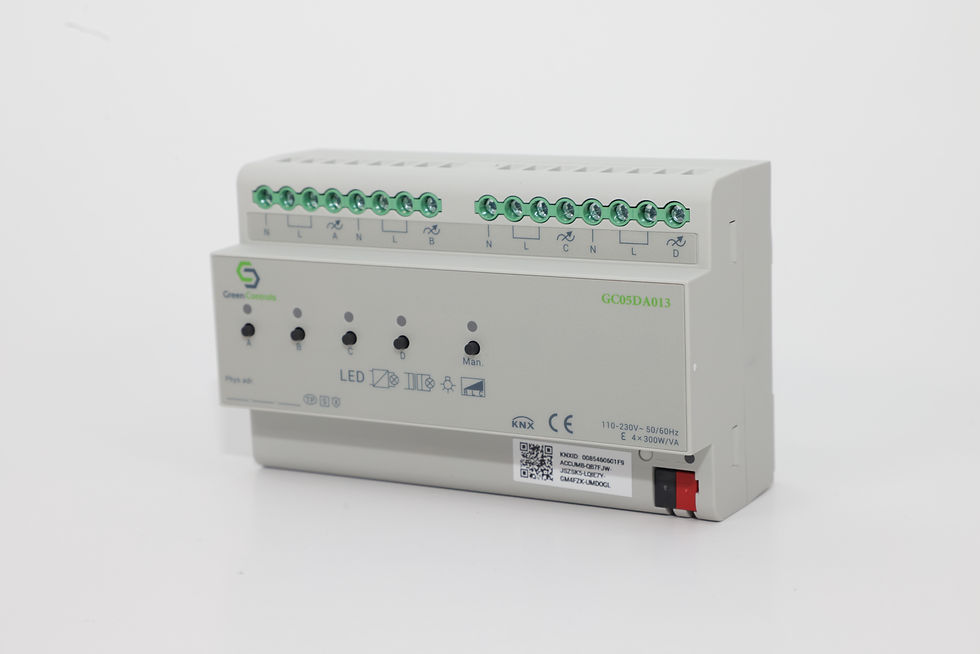

Dimming Actuator, Universal, 300W, 4 channel
SKU: GC05DA013
This model is a 4 channel 300W Universal Dimmer. Designed for Leading edge/Trailing edge phase cut dimming. Can control up to 6 dimming curves, including Linear, Exponential, Cubic, Quadratic, Logarithmic, Root and User defined curves.
General Specification
Operating Voltage : 21 - 30 VDC via KNX. Un rated voltage : 110~230 V AC (50/60HZ). Dimming channel : 1/2/4 folds, separate phase connection. Max. output capacity : 300W (per channel, Incandescent/Halogen/LED, trailing edge) Parallel : 2 channels 500W / 3 channels 750W / 4 channel 1000W. Size: 144 x 90 x 64 mm.
Policy
Product warranty period: 1 year
Technical Sheet
