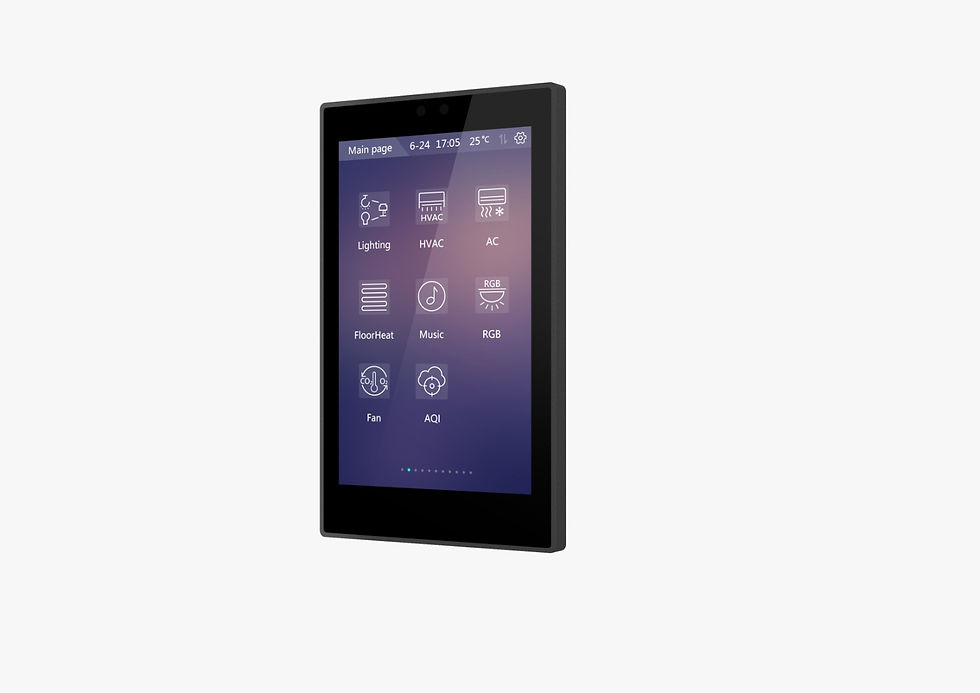

Touch Panel 5-inch V50s
SKU: GC09TP006WH
GreenControls Smart Touch V50s is a 5inch Touch Screen Panel designed to provide a luxurious user experience of the KNX system. The features has the following features:
• Switching, dimming, curtains control, scene and other control functions
• Audio control
• Thermostat
• Proximity sensing• Energy Metering display
• Time and date display
Comes in 3 variants:
1) Black Frame (BK)
2) White Frame (WH)
Color
General Specification
Operating Voltage: 21-30V DC via KNX
Operating Current: <125mA
DC Power: 24V DC
Consumption: <3W
Certification: KNX Certified
Installation: Conventional 80mm or 86mm wiring box
Size: 86 x 148.8 x 11.5 mmPolicy
Product warranty period: 1 year
Technical Sheets
